IBM 5162 Fixed Disk and Diskette Drive Adapter -
Cabling Information
Floppy drive (diskette drive)
You need to use the particular cable shown at here. The IBM controller expects it. The cable manipulates both the motor-on and drive-select lines.

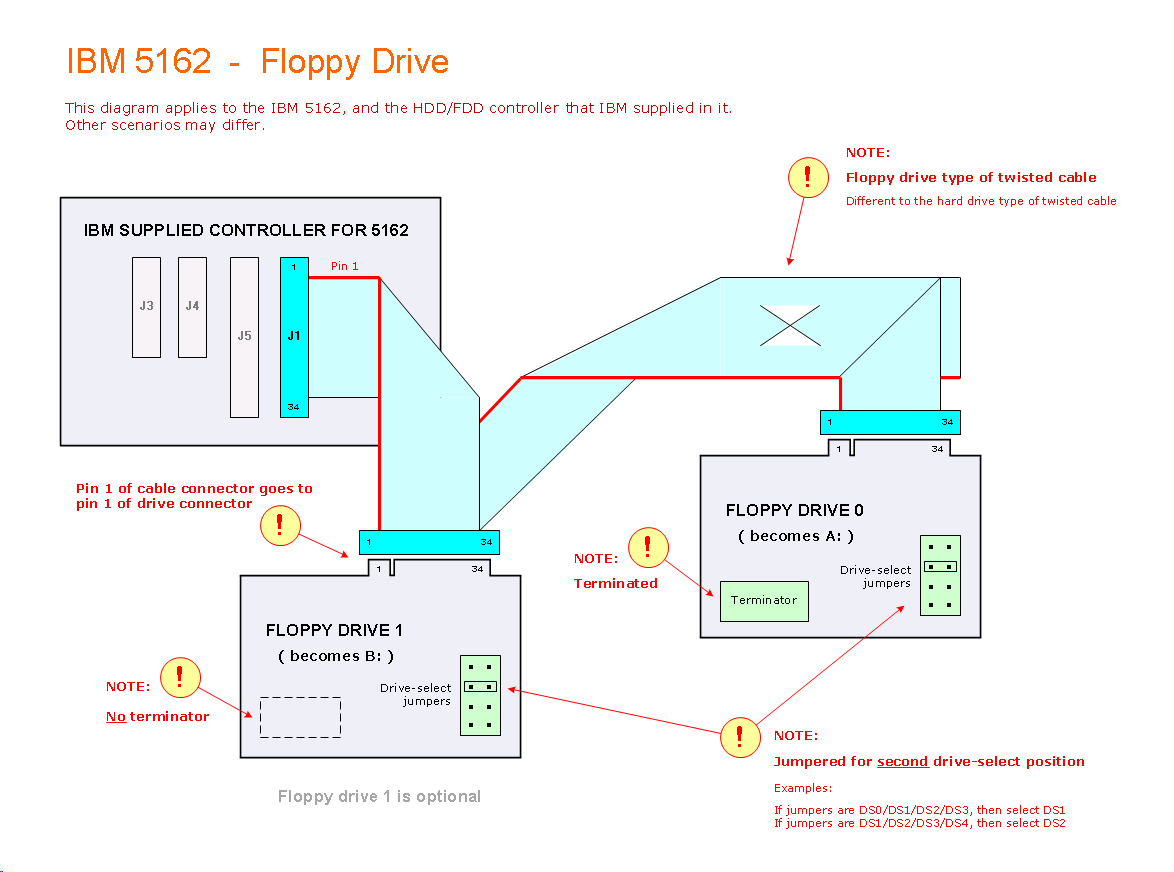

Click here to see a floppy drive cabling diagram.
Click here to see the difference between a floppy twisted cable and a hard drive twisted cable.
Hard drive (fixed disk)
You have a choice between using a flat (untwisted)(straight-through) control cable, or a twisted control cable.
Check to see which of the two you have, then use the corresponding option below.

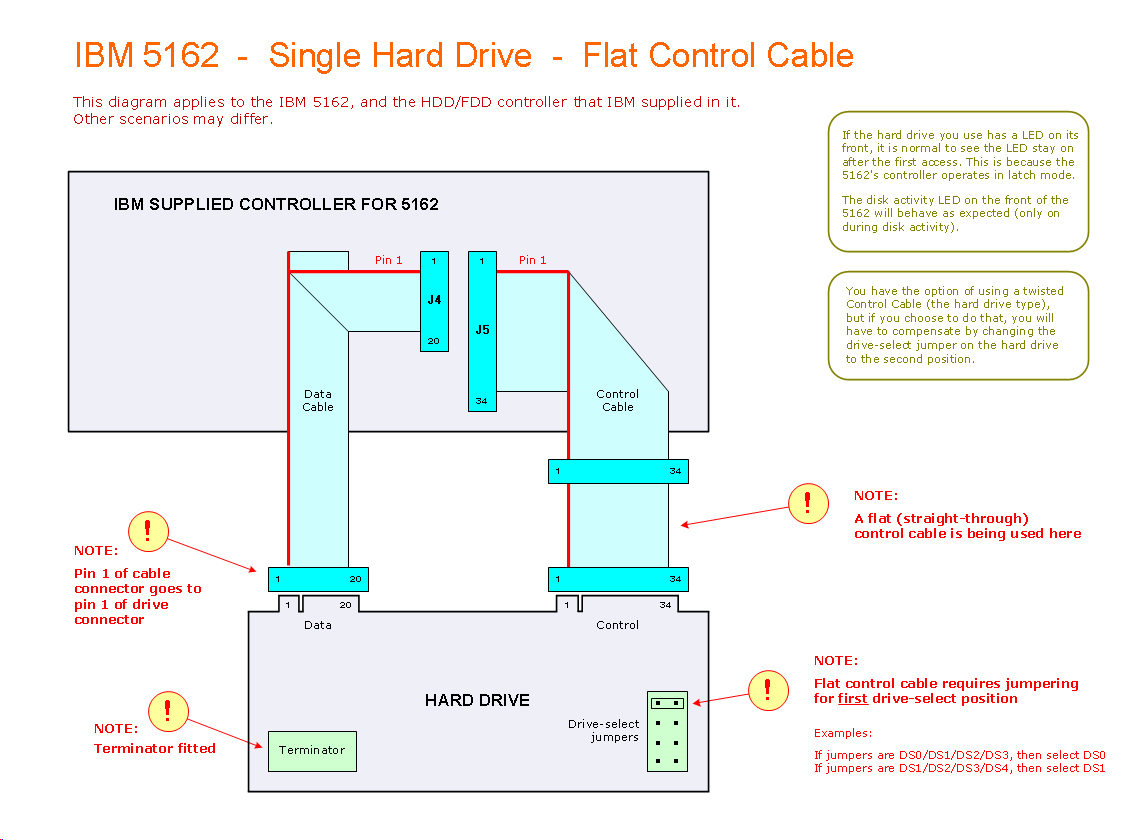

OPTION #1: Flat (untwisted)(straight-through) control cable
Click here to see a hard drive cabling diagram.

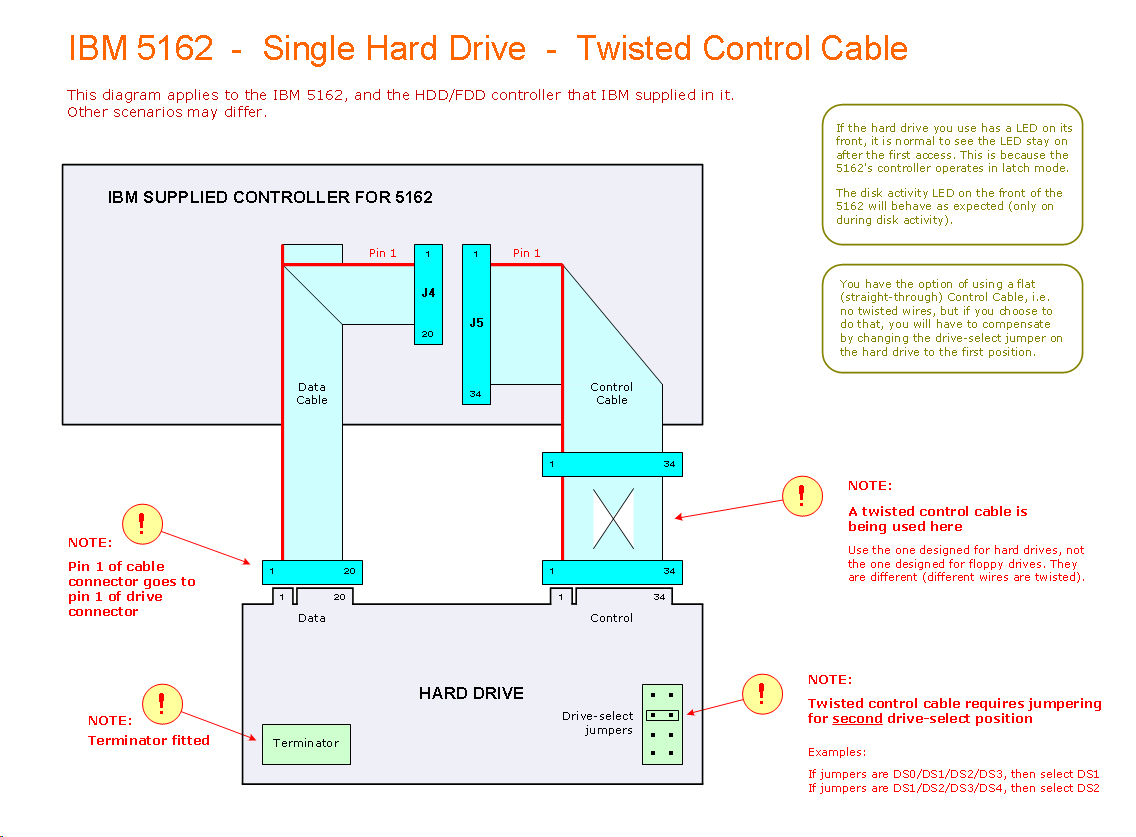

OPTION #2: Twisted control cable
Click here to see a hard drive cabling diagram.
Click here to see the difference between a floppy twisted cable and a hard drive twisted cable.
Click here to see what I call a double-twisted cable, a cable with twists at two locations. Rare, but it needs to be compensated for.
